DiscMaster SF

Deburring, edge rounding and oxide removal

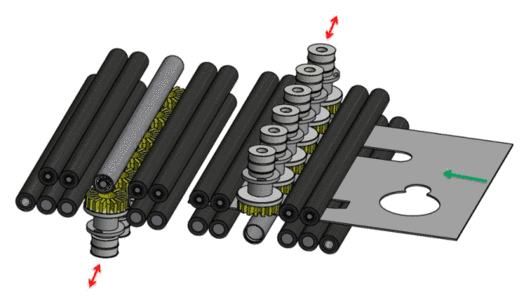

360° deburring and edge rounding from top and bottom

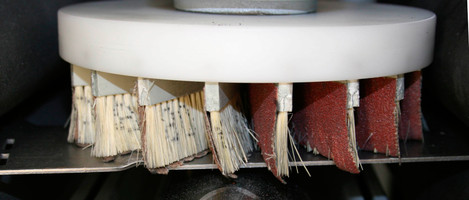

The DiscMaster SF is equipped with oscillating disc stations on the top and
on bottom.These discs with flexible abrasive sanding strips rotate and
oscillate over the workpiece. The inside and outside edges are processed
from all angles and directions resulting in uniform edge rounding independent
of the orientation of the cutting contours.

For laser cut and punched parts
For flat and three
dimensional formed parts
For foil-covered sheet metal
For zinc-coated sheet metal

The Advantages

– Top and bottom processing in one pass

– Uniform 360° edge rounding independent of direction of contour

– Adjustable grade of edge rounding

– Possible to set abrasives below roller level

– For laser-cut or punched parts

– For flat or formed parts

– For oxide removal

– Very gentle on surface when processing zinc-coated or foiled parts

– Low energy consumption

– Silent processing

– Very forgiving with differences in material thickness

– Easy to use Touch Panel

The models

The Discmaster SF is available in two different models:

DiscMaster SF1/1: One oscillating disc station from top, one from the bottom,
in 1000mm or 1500mm working width. This is the reasonable priced model for 360°
top and bottom processing.When equipped with Smart-Flex sanding strips it is ideal
for deburring/edge rounding formed parts, zinc-coated parts or foiled sheet
metal – parts which are difficult for standard abrasive belt deburring machines.
When equipped with stainless steel wire brushes the machine is ideal for 360°
oxide removal in one pass.

DiscMaster SF 1/1

DiscMaster SF 2/2:Two oscillating disc stations from top, two from the bottom,
in 1000mm or 1500mm working width. For more pronounced edge rounding it is
possible to use different grit sizes, e.g. grit 60 on the first and grit 80 on the
second units.

When using Smart-Flex sanding strips on the first and stainless steel wire brushes
on the second units the machine is ideal for edge rounding and oxide removal of laser
cut steel parts in one pass.

DiscMaster SF 2/2
